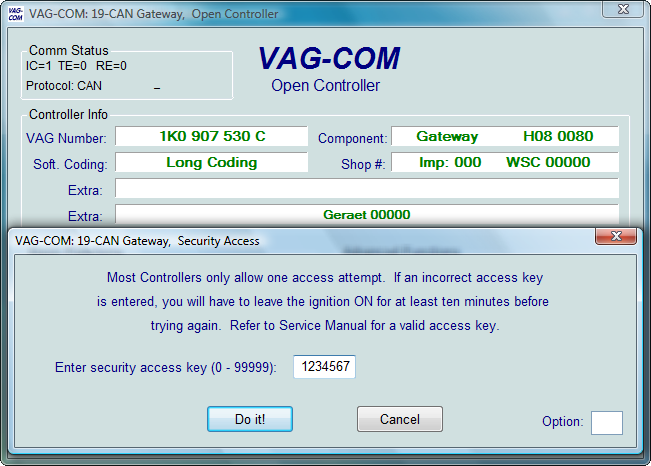

Security Access Screen

Corresponds to VAG 1551/2 Function 16, (KWP-2000 only)

The Security Access Function must be used on some (but not all) KWP-2000 Control Modules before you can Recode or change Adaptation values. On others, it "enables" certain features like cruise control. Valid Login codes can be found in the Factory Repair Manual for your car.

Balloons: VAG-COM can show Security Access "charts" when appropriate information is available in a Label File for the control module in question. The balloon will appear when the mouse cursor is hovered over the Enter security access key field.

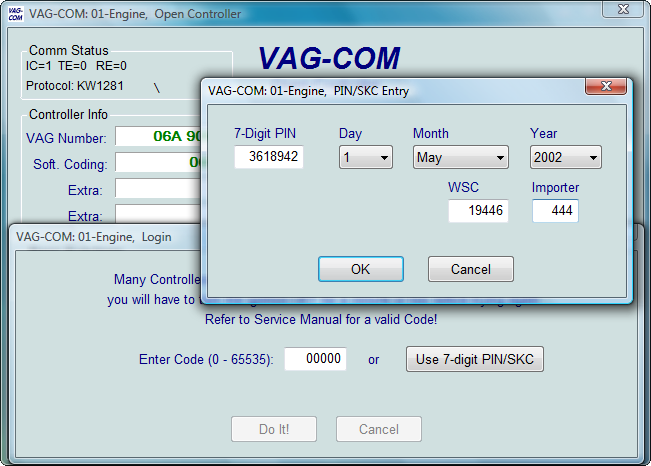

The Security Access Function supports 7-Digit SKCs.   This is needed for Immobilizer Functions (such as key programming) on the latest vehicles like the Touareg:

Use the [Do It!] button to save the Login and return to the Select Function Screen.

Use the [Cancel] button to cancel the Login and return to the Select Function Screen.

The [Option] button is only to be used if you are given specific instructions from Ross-Tech.


Shareware Limitation(s):  This function is not available in shareware.
