- Select Control Module Screen

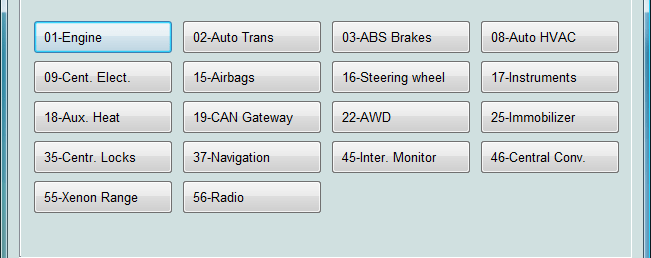

(Click the tabs in the picture above -- simulation will only work if you have JavaScript enabled)

The various computers in the car are called “Control Modules” or "Controllers". On this screen, you select which Control Module you want to "talk" to. Note: Your car will not have all the Control Modules listed in VAG-COM, only the ones on the Applications Page for your car.   Newer cars have more, older cars have fewer.

Each tab on the top of this screen contains a number of different controllers grouped by category: Common, Drivetrain, Chassis, Comfort/Conv, Electronics 1, and Electronics 2.

Each possible controller is listed as a number and a description, i.e., [01-Engine]. The number corresponds to the controller number that you'd find in your Factory Repair Manual in the instructions for using a VAG-1551 or other factory diagnostic tool.

To establish communications with a particular Control Module, simply click on the appropriate button.

Direct Entry
You can also enter any address manually.  Simply put in the address and click [Go!]

To return to the Main Screen, click [Go Back]

In this demo, any Controller you click will take you to the Engine controller. Examples screens for functions may be from various different Controllers (Engine, Airbags, Instruments).




Shareware Limitation(s):  None
