ISO-COM

ISO-COM
ISO-9141 <-> RS-232  Communications Adapter

Out of production -- no longer available.

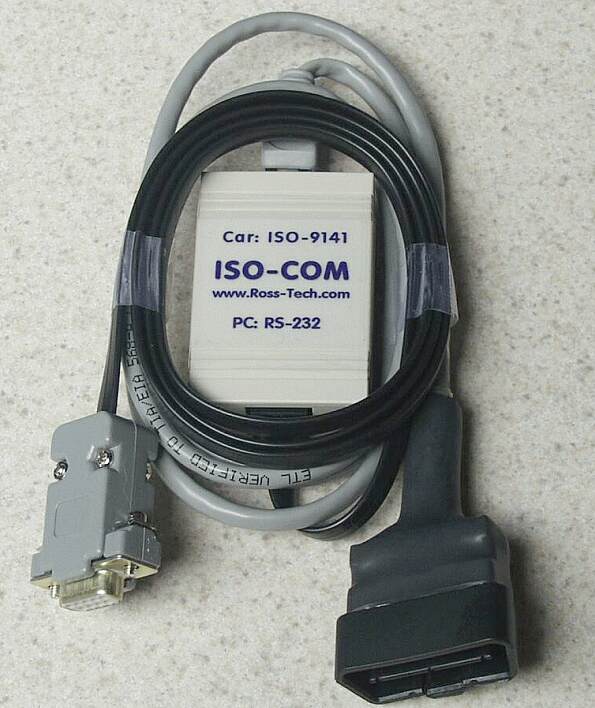

Click to enlarge

   Features:
  • Optically Isolated, no electrical connection between car and PC.
  • Modular design, allows use of various cables
  • User-replaceable fuse on K-Line.
    -- Eliminates the most common failure mode.
  • Potted electronics
    -- For durability and resistance to environmental hazards.
  • 12 month guarantee on electronics.
    -- Cables or housings damaged by abuse will be repaired or replaced for nominal fee

This adapter comes with an OBD-II type connector which plugs right in to most 1994 and newer VW's and 1996 and newer Audis.   Most 1990-1995 Audis and 1990-1993 VW's have the "2x2" data link connector, click here for more info.

Extending this Interface:

The cables on this interface have a total length of about 6 feet  -- just right for most laptops.   If you want to use this interface with a desktop PC, you should get an RJ45 Coupler (available as a $5 option on our order form) and an ordinary CAT5 Ethernet Patch Cord in whatever length you need up to 100' (30m).   Make sure the Patch Cord has all 8 conductors and is wired "Straight Through".   A "Cross-Over" type cable is not acceptable and may damage your interface.   See the this FAQ entry.   Always extend the car-side of this interface.  We do not recommend or support extending the PC side of this interface.

Known Issues:

Some Acer and Compaq Presario Laptops  have "lame" serial ports which do not come close to meeting the RS-232 spec and will not work properly with this adapter.   If you have an Acer or Presario,  you should use a TWIN-COM, TWIN-USB and HEX-COM .

A few models of cars have extremely tight trim around the OBD-II connector.  The ISO-COM uses an OBD-II connector that is sometimes difficult to fit easily into the following cars:

Note:

We do not sell any interface adapters  as a "Stand-Alone" products.   We only sell them with our software.

How to order:

  • Out of production -- no longer available.
