                   UNI-COM

UNI-COM
ISO-9141 <-> RS-232  Communications Adapter

Out of production -- no longer available.

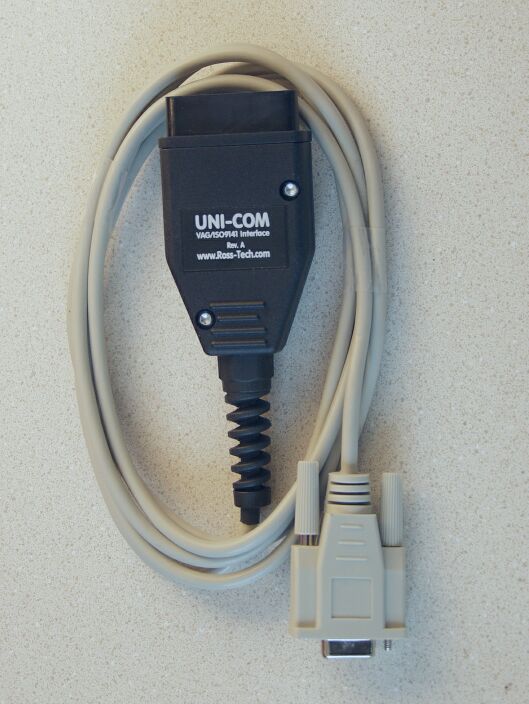

Click for larger picture

   Features:
  • Improved replacement for our original ISO-COM Interface.
  • Overcomes the "Lame" port problem which made the ISO-COM incompatible with some laptops.
  • Compatible with all 1990-2003 VW/Audi cars using a single K-line or K plus L.  (2002+ Audi models gain additional functionality with the TWIN-COM or HEX-COM).
  • Fully automatic protection against over-current conditions on the K-line.
    -- Eliminates the most common failure mode.
  • Bi-Color (red/green) status/activity LED
  • 12 month guarantee on electronics against defects.

This adapter comes with an OBD-II type connector which plugs right in to most 1994 and newer VW's and 1996 and newer Audis.   Most 1990-1995 Audis and 1990-1993 VW's have the "2x2" data link connector, click here for more info.

Extending this Interface:

  • The cable on this adapter is about 6 feet long -- just right for most laptops.   If you want to use this interface with a desktop PC, you will need a standard serial (DB9M to DB9F) extension cord.   We usually stock extensions in 15' (3m), 25' (7.5m) and 50' (15m) lengths.   See the order form for pricing.

Note:

  • We do not sell any interface adapters  as a "Stand-Alone" products.   We only sell them with our VAG-COM software.

How to order:

  • Out of production -- no longer available.
