MAX-COM
ISO-9141 <-> RS-232  Communications Adapter

Out of production -- no longer available.

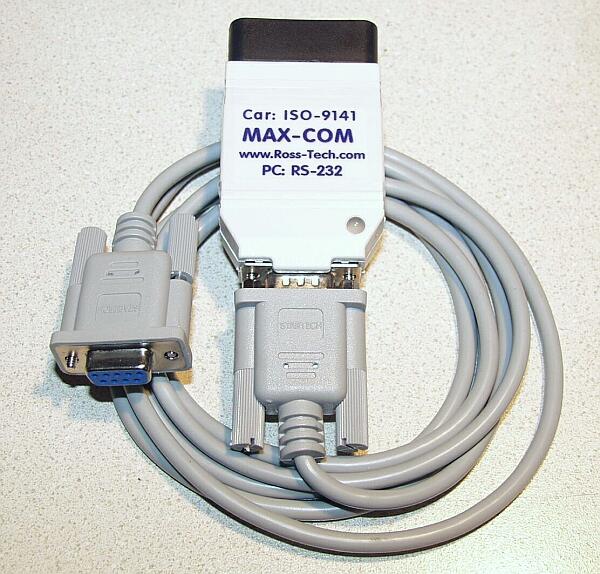

Click for larger picture

• Compatible with all 1990-2002 VW/Audi cars using a single K-line or K plus L (2002+ Audi models gain additional functionality with the TWIN-COM).
• Fully automatic protection against over-current conditions on both K and /L lines, no fuses required.
  -- Eliminates the most common failure mode.
• Bi-Color (red/green) status/activity LED
• 12 month guarantee on electronics against defects.

This adapter comes with an OBD-II type connector which plugs right in to most 1994 and newer VW's and 1996 and newer Audis.   Most 1990-1995 Audis and 1990-1993 VW's have the "2x2" data link connector, click here for more info.

Extending this Interface:

The cable on this adapter is about 6 feet long -- just right for most laptops.   If you want to use this interface with a desktop PC, you will need a standard serial (DB9M to DB9F) extension cord.   We usually stock extensions in 15' (3m), 25' (7.5m) and 50' (15m) lengths.   See the order form for pricing.

Known Issues:

A few models of cars have extremely tight trim around the OBD-II connector.  The MAX-COM uses an OBD-II connector that is sometimes difficult to fit easily into the following cars:

•  Audi A4 Models with diagnostic connector next to rear ashtray.   US: 1996 only.   Rest of World: 1995-2001 (all 8D chassis).    US models from 1997 through 2002 are fine.
• Audi A6 models with diagnostic connector in center-console between seats.    US:  1996-1997 (sedan) and 1996-1998 (Avant).    Rest Of World:  Likely the same.
• VW Passat 3B Chassis with diagnostic connector in center-console between seats (1997-2002)   Non-US models only!  US models have diagnostic connector under dash and work fine.

Note:

We do not sell any interface adapters  as a "Stand-Alone" products.   We only sell them with our VAG-COM software.
